building facade led lighting > IP66 Waterproof Building Facade Led Lighting , Outdoor Flood Light Fixtures Meanwell Driver
10%OFF
China IP66 Waterproof Building Facade Led Lighting , Outdoor Flood Light Fixtures Meanwell Driverwholesale
  • good qualityIP66 Waterproof Building Facade Led Lighting , Outdoor Flood Light Fixtures Meanwell Driver

IP66 Waterproof Building Facade Led Lighting , Outdoor Flood Light Fixtures Meanwell Driver

Price: US $58.00 - 67.00 / pieces

US $58.00 - 67.00 / pieces

color temperature:
wattage:
Quantity: pieces   ( pieces available)
Shipping Cost: to
Delivery Time:
Total Price: Depends on the product properties you select
  Add to cart


Item specifics

product name:narrow beam led flood light
Material:Aluminum
CCT:3000k/4000k/5000k
CRI:80
Life Span:50000hour
Size:268.4*134.4*161.5

Product Description





Meanwell driver IP66 waterproof max 70 distance for





building facade illuminating





1. Product Description:

The usage of the above lighting lamps are the Jinshun brand one degree beam angle
controllable LED projection light. Though the power of the light is only 12Watt, but the
range can reach more than 70 meters. The scattered light source is efficiently gathered in
a bunch by special deigned optical lens. Due to this, the controllable narrow beam angle LED
light can reduce the pollution to almost zero degree, so the light is the most suitable
choice for residential buildings.



2. Technical parameters

Item No

JS-XT-XM-L-11WJS-XT-XHP35-12WJS-XT-XHP50-18WJS-XT-036-25WJS-XT-022-12W

LED Chip

CREE-XM-L2CREE-XHP35CREE-XHP50CITIZEN-036CITIZEN-022

Driver

CustomizedMeanwellCustomizedCustomizedMoso

Power

11W12W18W25W12W

Nominal Voltage

85V-265V100V-240V85-265V100V-240V100V-240V

Working Temperature

-40~50°-40~50°-40~50°-40~50°-40~50°

Light Angle

1°1°1°1°1°

CCT

3000K/4000K/5000K3000K/4000K /5000K3000K/4000K /5000K3000K/4000K /5000K3000K /4000K /5000K

CRI

Ra≥80Ra≥80Ra≥80Ra≥80Ra≥80

Life Span

50000Hr50000Hr50000Hr50000Hr50000Hr

Protection Grade

IP66IP66IP66IP66IP66

Dimension

(mm)

268.4*134.4*161.5268.4*134.4*161.5268.4*134.4*161.5268.4*134.4*161.5268.4*134.4*161.5

Lamp Weight

1.69kg1.69kg1.69kg1.69kg1.69kg

Projection Distance

70m70m70m25m20m

Initial Light Width

80mm70mm90mm380mm200mm



3. Product Dimension

pls contact us for more



4. Installation

pls contact us for more



5. Feature



(1). Innovatory Lighting Design:1degree super narrow clear light spot

(2). Waterproof protection grade:IP66

(2). Reliable Quality, Long Life

(3). Energy saving and environment friendly

(4). 70 meters long projection distance

(5). Unique design,easy assembly,fashionable and durable

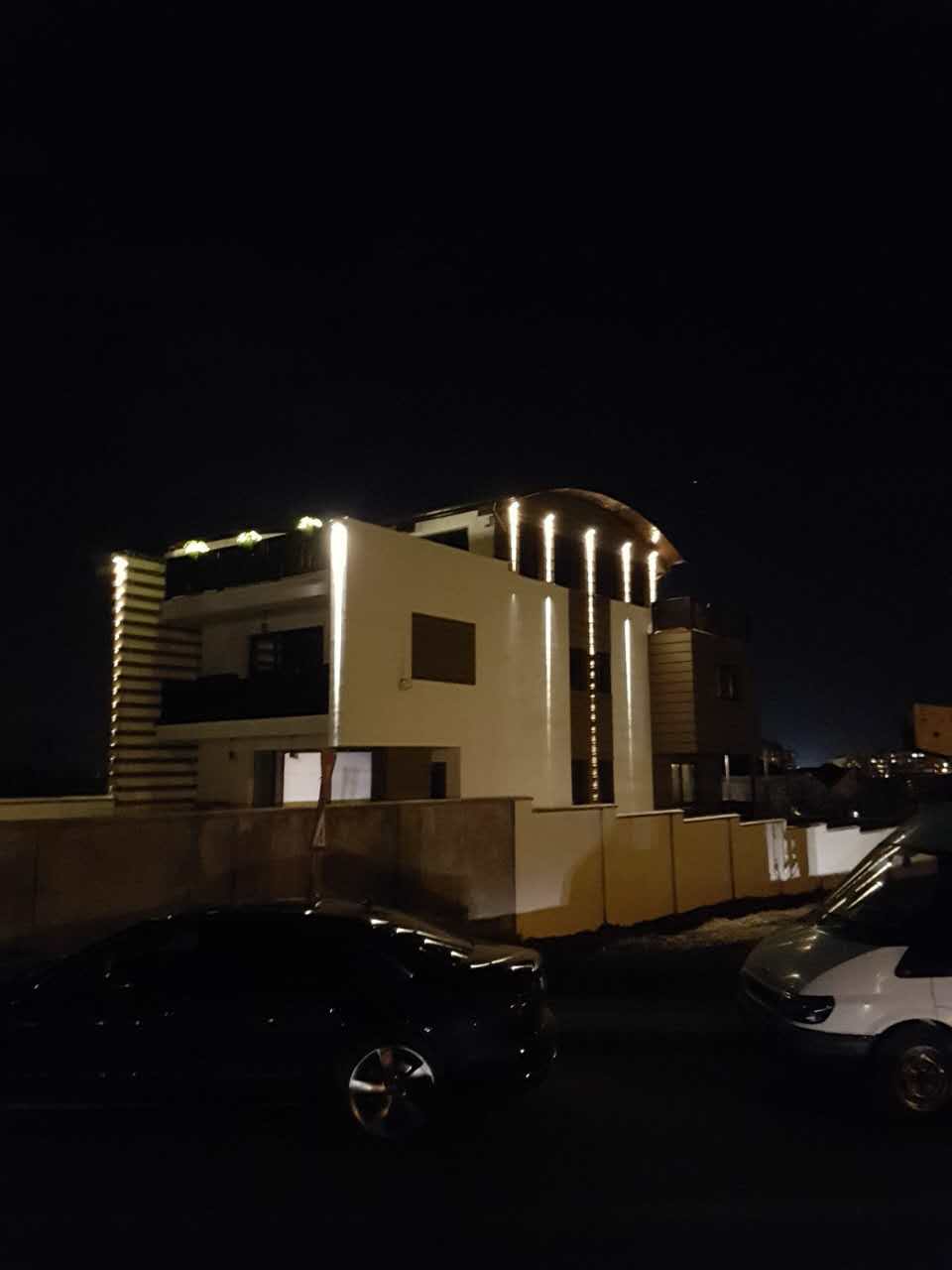

6. Lighting Effect and Application:

One degree flood light,mainly used for architectural lighting purpose , especially facade lighting,building outline lighting,the lighting will improve the atmosphere of the building.









7. Package:


Packing Carton: 61*40.5*17(cm)
Weight:10.5KG/CTN (4PCS in ONE CARTON)





8. Shiping:



Normally, the goods will be shipping by Sea, by air or by DHL according to customer's request



1). Strong and professional package for safety transportation.

2). Clear label Item show what is product in the cartons, including watts, CCT, quantity,etc.



9. Certification: CE, ISO9001,ROHS







10. FAQ



What are your main products?

Our main products are led lights, led light accessories ,glass lens, silicone lens, LED street light, LED flood light, LED highbay light, LED light module and so on, OEM are welcome.



What is the location of your company?

Our company is located in Wuxi city, Jiangsu province in China, near the biggest sea ports of China Shanghai port, about 3 hours by car. If you would like to have a visit, welcome.



What is your MOQ?

Our MOQ is usually 100PCS, first trial order can be to be discussed.



What is the shipping port?

We ship the goods via Shanghai port.



What is your delivery time?

The time of delivery is about 10~20days after we receive the deposit.



What are your payment terms?

We accept 100% T/T in advance, or paypal, Western Union, to be discussed.



What is your sample time?

Usually we will take 3~5 days to make the samples.



Packaging Details

Unit Type: piece
Package Weight: 3.00kg
Package Size: 29.50cm x 19.00cm x 14.50cm
